A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers. This sandwich setup allows to achieve excellent mechanical performance at minimal weight. The very high rigidity of a sandwich panel is achieved thanks to interaction of its components under flexural load applied to the panel: core takes the shear loads and creates a distance between the skins which take the in-plane stresses, one skin in tension, the other in compression. General information on sandwich panel structure, different sandwich core types available and the potential with respect to weight savings is available in the following reference.
Size Details as below
Cover width : 1000mm/1120mm for wall, 1000mm for roof
Steel thickness: we can do from 0.4mm-0.6mm
Steel color: white ,see blue or as your inquiry
Interlayer thickness: 35mm, 40mm,50mm ,75mm, 100mm ,120mm,150mm
EPS density: from 40kg/m3 to 45kg/m3
Length: less than 11.8meter
Delivery time:10-20days
Quality:accept your inspection or MIC certificate.
|
Effective width |
Wall panel: 1000mm/1120mm; Roof panel: 1000mm |
|
Length |
According to customer's request |
|
Materials |
polyurethane(PU), Color steel sheet |
|

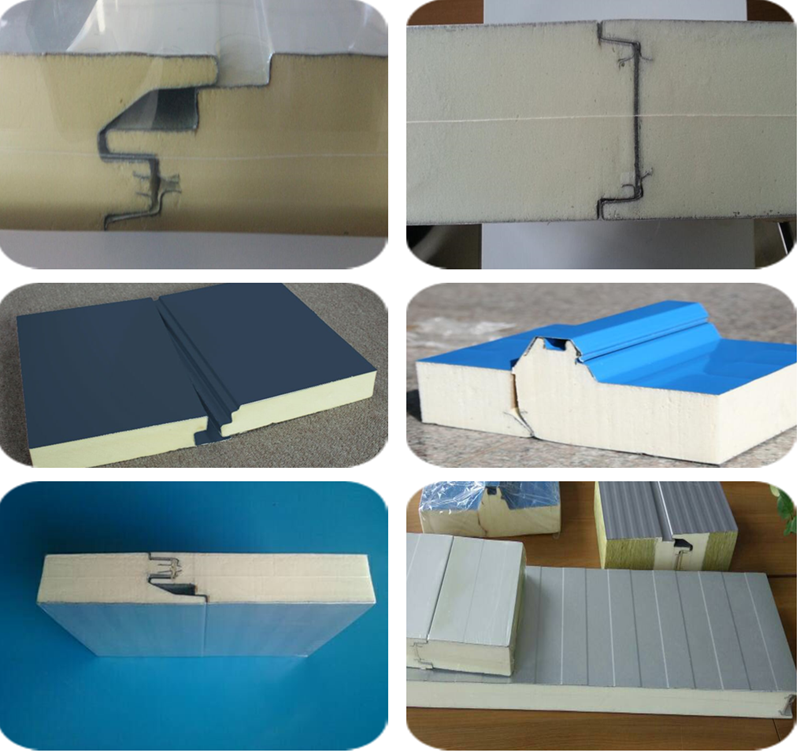

Structure |
Upper and lower layer: Color steel sheet |
|
Middle:polyurethane(PU) |
|
|
Thickness |
Color steel sheet: 0.4-0.6mm |
|
The polystyrene density |
40-45kg/m3 |
|
Conventional color |
blue, white ( common) |
|
Character |
Light in weight, heat insulation, water resistant, green and environmental |
|
Length |
Less than 11.8meter |
|
Delivery time |
10-20days |
|
Use |
various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc |
Show more details
Service&Support:
Smbuildpanel was established in 1998. The company has established large-scale production bases in Xiamen and Zhangpu. And set up multiple subsidiaries. Headquartered in the beautiful Gulf city of Xiamen, it covers an area of 300,000 square meters.

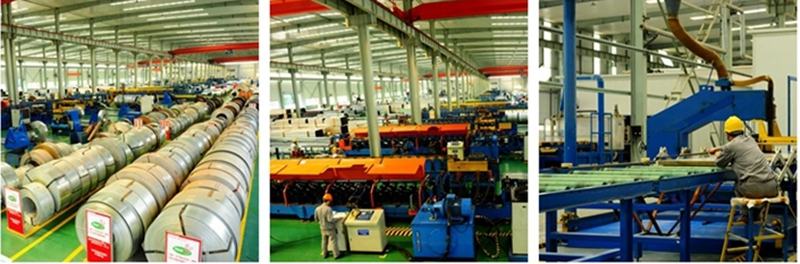

As a national high-tech enterprise, Smbuildpanel has 6 large-scale production workshops and more than 30 production lines. It has more than 20 years of experience in the steel structure industry. Our main products are: C / Z purlin, foam sandwich panel, glass magnesium sandwich panel, PU sandwich panel, rock wool sandwich panel, steel-bar truss floor deck plate, galvanized deck sheet,roof tile etc.
The company takes Xiamen as the center, radiates the East China and South China markets, and is exported to Europe, America and Southeast Asia. It has been exported to more than 50 countries and regions.
We are always committed to providing the best solutions for customers at home and abroad, and continue to win market favor with value-for-money cost-effective and considerate services.
