Customized Waterproof Insulation Roof Rockwool Sandwich Panel

Rock wool sandwich panel are very popular fireproof for building materials.
  • lead time:

    about 5-15workdays
  • shipping port:

    Xiamen, China
  • payment:

    100%TT or LC at sight
  • color:

    seablue white or RAL color
  • MOQ:

    1000SQM
  • products details

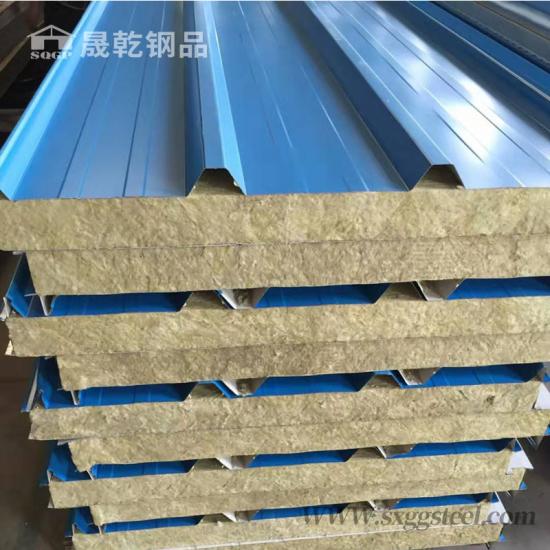

Product introduction

1.The ability of the fire-proofing of rock wool sandwich panel is over 1000°C for the rock wool is the non-fire material.

2. Good future in noise reduction, special suitable for the place where is high requirement in the sound insulation

3,Our Rock wool sandwich panel composite European standard.It is basalt as main raw materials.Upper and lower cotton board material is PPGI  steel.

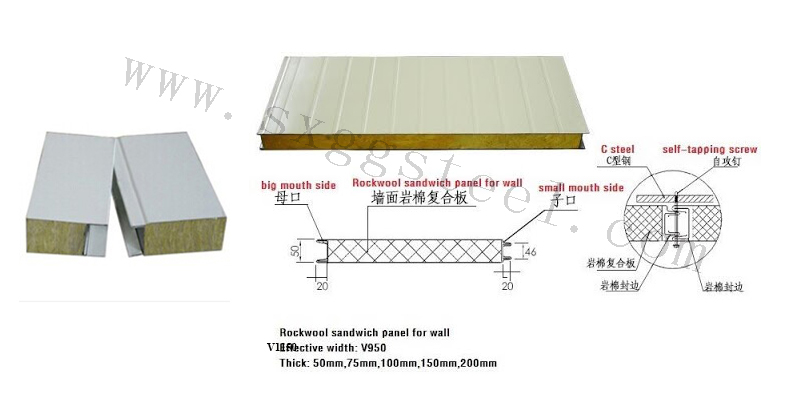

Joint way

There have a cover steel on the surface, it is improve the waterproof performance.




Panel features:

1.Fireproof with grade A1,

2.Heat insulation,

3.Sound proof,

4.Thermal insulation,

5.Anti-corrosion,

6.Earthquake resistance,

7.Eco-friendly,

8.Easy to install,

9.High strength,

10Long life time.



Product technology data

Rockwool Sandwich Panel

Effective WIDTH

Wall panel: 950mm

Roof panel: 960mm

MATERIAL

Color Steel Sheet

Rockwool board

STRUCTURE

Upper and lower layer: color steel sheet

Middle layer: Rockwool board

THICKNESS

Color steel sheet: 0.3~0.6mm

Rockwool board: 50mm, 75mm, 100mm

Rockwool Density

80~110kg/m³

Lifetime

20~35 years

Payment and shipment

1.Packaging Details: According to international export standard for Fireproof Australian standard rockwool / mineral wool sandwich panel 50mm 75mm 100mm wall panel and roof panel

2.Delivery time:20days after deposit

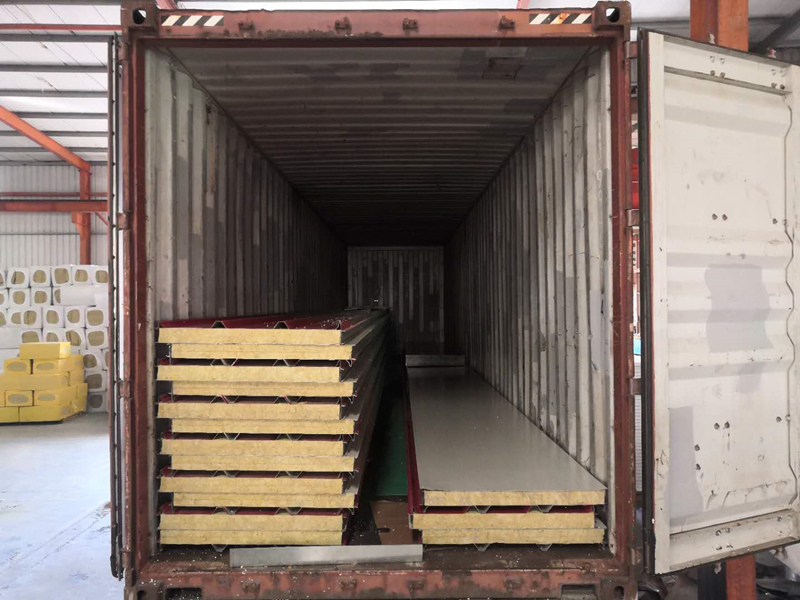

Loading reference
