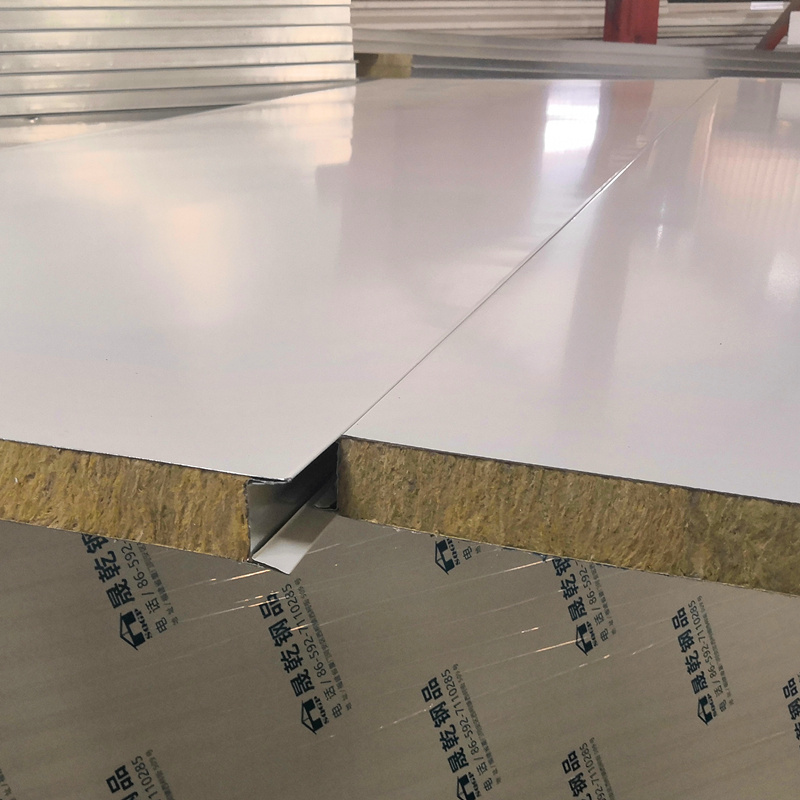

Rock Wool Composite Panel, composited by color steel / galvanized steel and rock wool. With the high quality and efficient thermal insulation, sound insulation and sound absorption features, rock wool composite panel can be widely used in interior or exterior wall, partition, vessel, bunk bed, heat exchanger, freezer, cold room, etc.
Specification:
The density of rock wool is customized, and the top and bottom sheets can be aluminum, galvanized steel, stainless steel, etc.
Top Steel Thickness 0.3-0.8 mm
Bottom Steel Thickness 0.3-0.8 mm
Regular Thickness of Panel 50/60/75/80/100/120/150/175/200 mm
Regular Width of Panel 950/1000-1100/1150 mm
Available Density of Rock Wool 80/100/120/125 kg/m³
Surface Texture and Appearance samll wave, flat, embossment, big rib, etc.
Regular Surface Treatment PVDF,PE,HDP, SMP, etc.
Perforation Yes (customized)
Applications Wall cladding(exterior & interior), partitions, ship hull, roof, tunnel, etc.
Customerization(MTM) Yes (color, surface texture, size, shape, pattern, etc.)
Featured:
1. Heat and sound insulation. Temperature suitable
2. Light weight, water-proof, Good chemical resistance and seismic resistance, anti-corrosion etc.
3. Energy conservation, environment protection, economical, good structure, easy to installation.

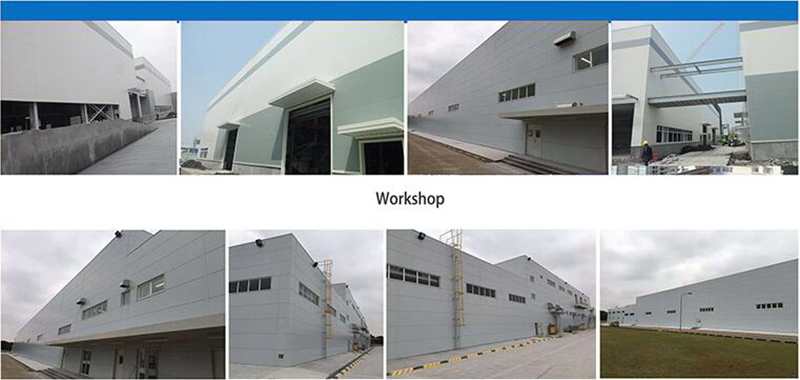

They are widely used in clean room as non-force bearing wall, roof and ceiling and as force bearing wall in single-storey prefabricated buildings. The major application demonstrates in the clean room system as partitions & ceilings.The fields range from electronics to semi-conductor, pharmaceutical, bio-tech and food processing etc.
