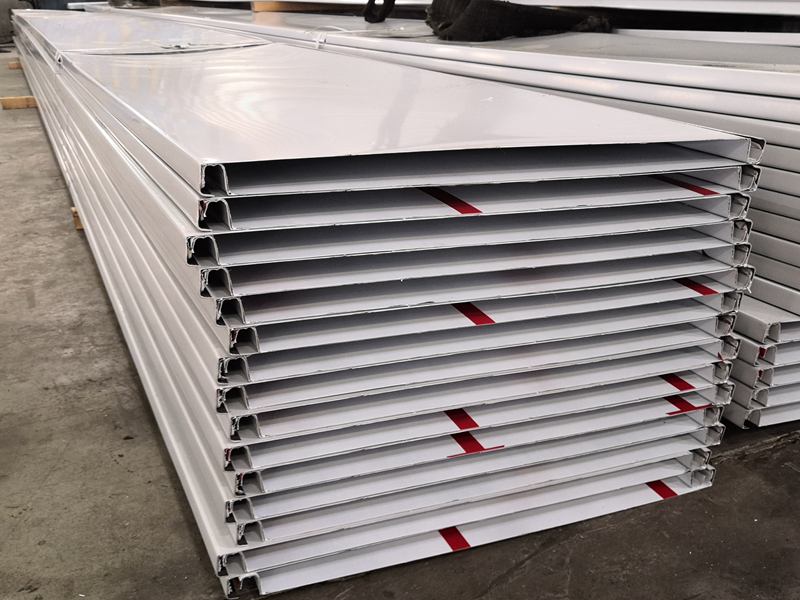

Snap-Lock Standing-Seam Metal Roof Plate

This type metal roof plate upright double edging system is a diversified, high-quality roof system.
  • lead time:

    When we get the deposit after 5~15 days
  • shipping port:

    Xiamen port
  • payment:

    100%TT or LC at sight
  • color:

    Customized
  • MOQ:

    1000 Square meters
  • products details

Applications

It is widely used in airports, terminals, aircraft maintenance warehouses, stations and large transportation hubs, conference and exhibition centers, stadiums, exhibition halls, large public entertainment facilities, public service buildings, large shopping malls, commercial facilities, and residential buildings.

color roofing sheet

Product advantage

1. Elegant and beautiful, the roof line is slender and does not affect the roof design effect. The overall structure is waterproof and drainage.

2. The structure is simple, light and safe, especially in typhoons and heavy rain areas. Adopt automatic control system for construction, flexible installation, fast, accurate and economical.

3. Effective lightning protection performance, unlimited expansion and contraction, no expansion and contraction to the structure, strong sealing performance, good sound insulation effect, convenient maintenance, and environmental protection can be recycled.

color roofing sheet

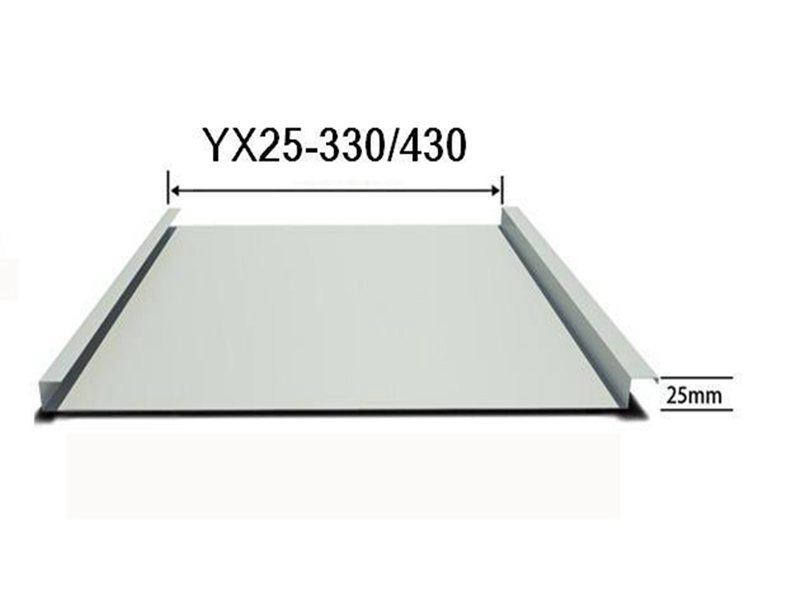

Product Name

Standing Seam Metal Roofing Sheet

Effective Width

300-430 mm

Length

Within 11.8m

Thickness

0.7-1.2 mm

Material

Aluminum, Copper, Titanium-Zinc

Coating

PE or PVDF

Colors

Sliver , Dark-gray, Brown, Black, etc

Price term

FOB, CIF

certificate
