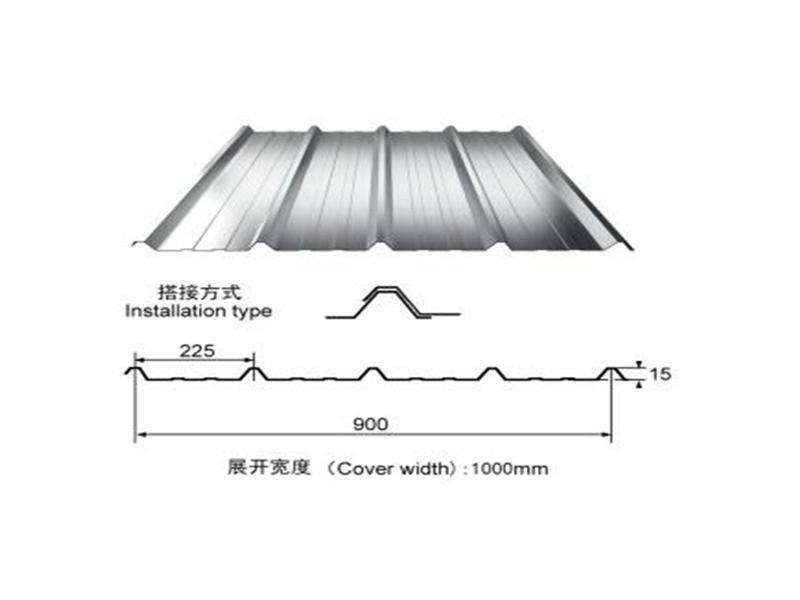

Product Parameters:
|
Profiled Steel Sheets Type |
YX15-225-900 |
|
Effective Width |
900mm |
|
Feeding Width |
1000mm |
|
Crest Height |
15mm |
|
Crest Distance |
225mm |
|
Panel Thickness |
0.3-0.6mm |
|
Panel Length |
20FT container: ≤ 5.85m |
|
Section Inertia |
4.5-7.02cm⁴/m |
|
Section Resistance |
6.98-8.31cm³/m |

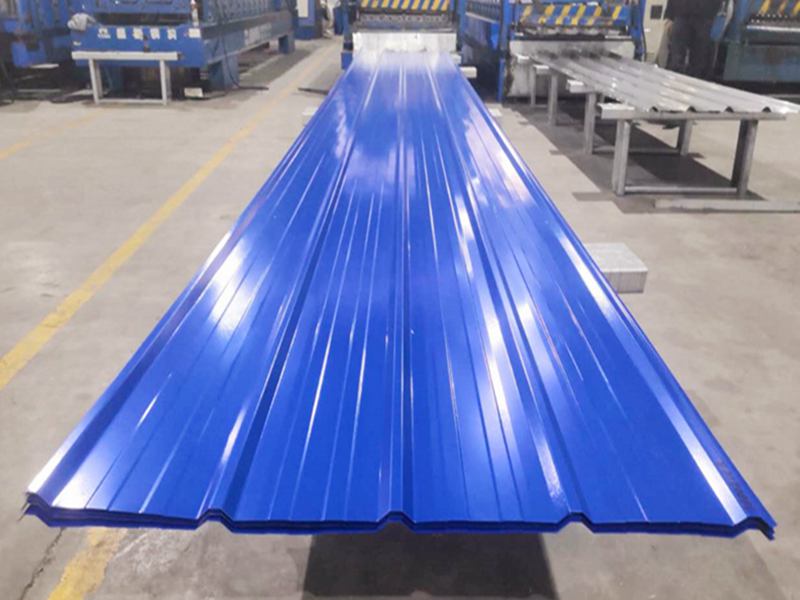

This type screw mounting plate. The first small edge forming technology, which has a good appearance after installation, and is economical and practical. Can make whole, partial arc board.
Application
Widely used in interior and exterior wall roof slabs. Such as industrial plants, integrated markets, warehouse logistics centers, etc.
