1.Features:
1. Heat and sound insulation. Temperature suitable for Glass Wool ranges from -200 centigrade to 150 centigrade.
2. Good chemical resistance, waterproof, anti-corrosion, insect-free etc.
3. Advanced Tech: Automatic rolling machines make the whole process of manufacture effective.
4. Energy conservation, environmental protection, economical, heat insulting, good structure, easy-doing construction
5. Light weight enough to reduce building expense.
6. Time can be saved on a building project due to the simple installation.
2.Application:
Steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of clean room, steel structure house, workshop, airport, cold storage, etc.
3.Specification:
|

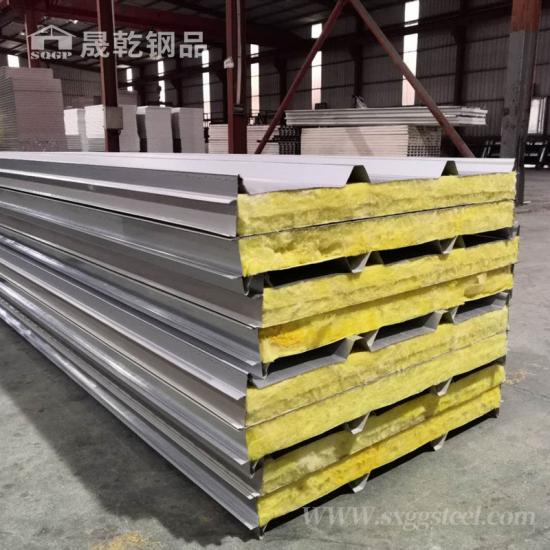

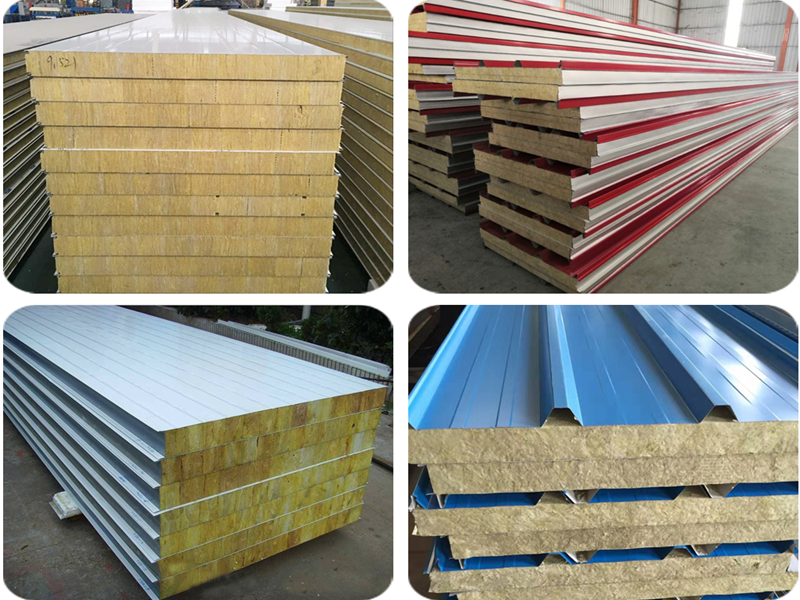

Specifications of glass wool sandwich panel: |
|
|
Effective width |
Wall panel: 950 mm 1150 mm Roof panel: 950 mm |
|
Length |
According to customer's request |
|
Materials |
Glass wool, Color steel sheet |
|
Structure |
Upper and lower layer: Color steel sheet |
|
Middle: Glass wool |
|
|
Thickness |
Color steel sheet: 0.3-0.6 mm ; Glass wool: 50 mm 75 mm 100 mm 150 mm |
|
The Density of glass wool |
60 kg/m3 |
|
Color |
Ral Standard |
|
Character |
Fireproof, heat insulation, green and environmental |
|
Use |
various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc. |
